A68T Series Folding Door
The A68T Series Aluminum Folding Door uses a thermal break (polyamide strips) to improve insulation and comfort. Built with robust aluminum profiles and a smooth sliding system, it supports double or triple glazing and multiple configurations—ideal for residential and commercial openings with custom sizes and finishes.
-
Thermal break system with polyamide strips for better insulation
-
High energy efficiency for improved comfort and reduced heat transfer
-

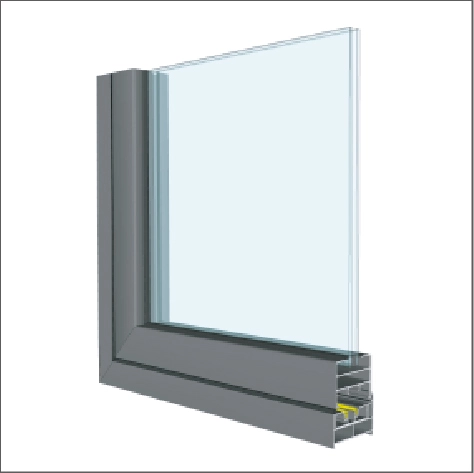

Robust aluminum profiles for strength and stability
-
Smooth sliding/folding operation with durable hardware
-
Customizable sizes & finishes to match project needs
-
Supports double or triple glazing
-
High weather-resistance sealing performance
-

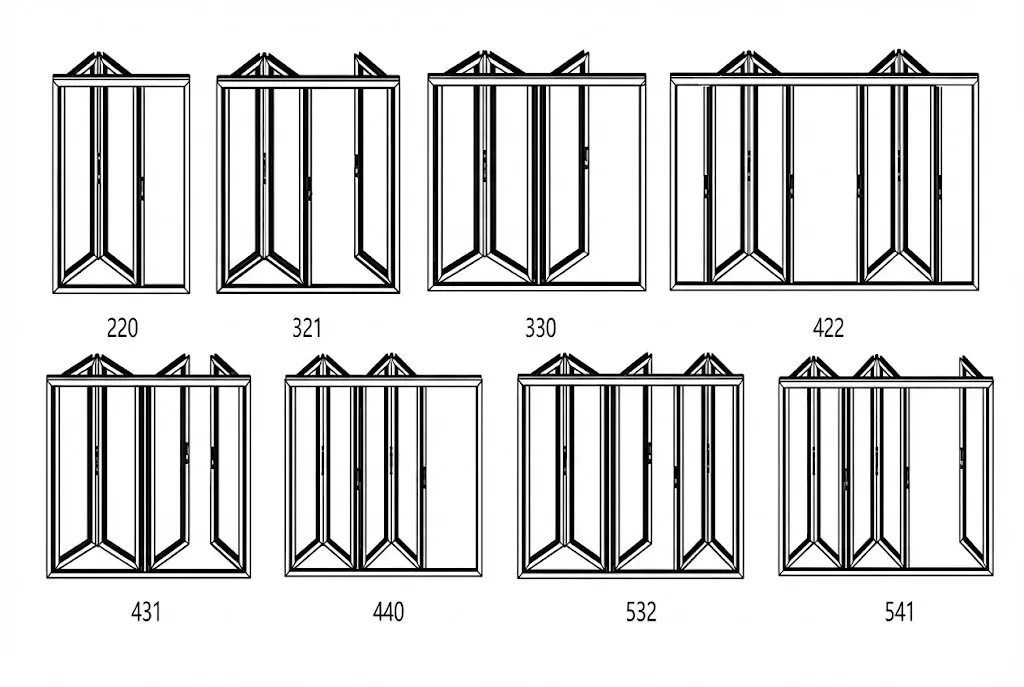

Multiple panel configurations available
-
Designed to meet NFRC / AAMA referenced standards
-
Rated maximum load-bearing: 150 kg
| Airtightness | Water-tightness | Sound Insulation | Thermal Insulation | Wind Resistance |
|---|---|---|---|---|
| 4 | 3 | 350pa | 4 | 44dB | 4 | 2.5w/m²k | AW (AAMA STANDARD) |
| Door Type | Visible Surface | Wall Thickness | Frame Thickness | Size Range (mm) |
| Aluminum Folding Door A68T Series |
Glass sash: 63.2mm | 2.0mm | 62.57mm | Width: 500–850 Height: 2000–3400 |
| Glass Thickness | Maximum Load-Bearing | |||
| 6 + 12A + 6 6 + 12A + 6 + 12A + 6 |
150kg | |||
Certifications
FAQs
What opening sizes can the A68T folding door support?
The shown size range is Width 500–850 mm and Height 2000–3400 mm (per panel range shown).
Can I choose double or triple glazing?
Yes. The system supports double or triple glazing, including configurations like 6+12A+6 and 6+12A+6+12A+6.
How energy-efficient is this door?
It uses a thermal break (polyamide strips) to reduce heat transfer, improving indoor comfort and overall energy performance.
What weather and wind ratings does it have?
The performance table shows Airtightness 4, Water-tightness 3 | 350pa, and Wind resistance AW (AAMA standard).
How much weight can the system carry?
The image lists maximum load-bearing of 150 kg.
Is it suitable for residential and commercial projects?
Yes—this system is presented for both Residential and Commercial applications.
Can I customize the color and finish?
Yes. It’s designed with customizable sizes & finishes to match different architectural styles.
What should I prepare to get an accurate quotation?
Opening width/height, desired configuration (number of panels), glass type (double/triple), finish color, and site location for delivery/installation requirements.
Performance & Technical Advantages
Sound Insulation
Thermal Insulation
Airtightness
Water-tightness
Wind Resistance
Customization Options For Aluminum Door
Color
Standard colors, matte finishes, custom RAL matching
Glass
Double glazing, triple glazing, Low-E options
Frame
Thermal break profiles, reinforced frame designs
Size
Custom width, height, and proportions available
Hardware
Multi-point locking, enhanced security hardware
Style
Panel configurations and custom sizes matched to project opening requirements.
