A80T Series Casement Window
The A80T Series Casement Window uses a thermal break (polyamide strips) to improve comfort and energy control. Built with robust aluminum profiles and high weather-resistant sealing, it supports double or triple glazing and customizable sizes—ideal for residential and commercial projects.
-

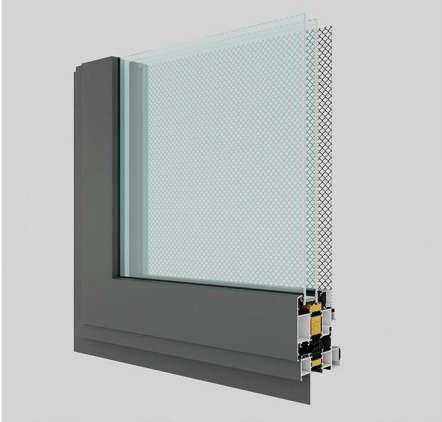

Thermal break system with polyamide strips
-
High energy efficiency design for better comfort
-
Robust aluminum profiles for strength and durability
-
High weather-resistance sealing performance
-
Supports double or triple glazing
-
CSA certified product (as shown)
-

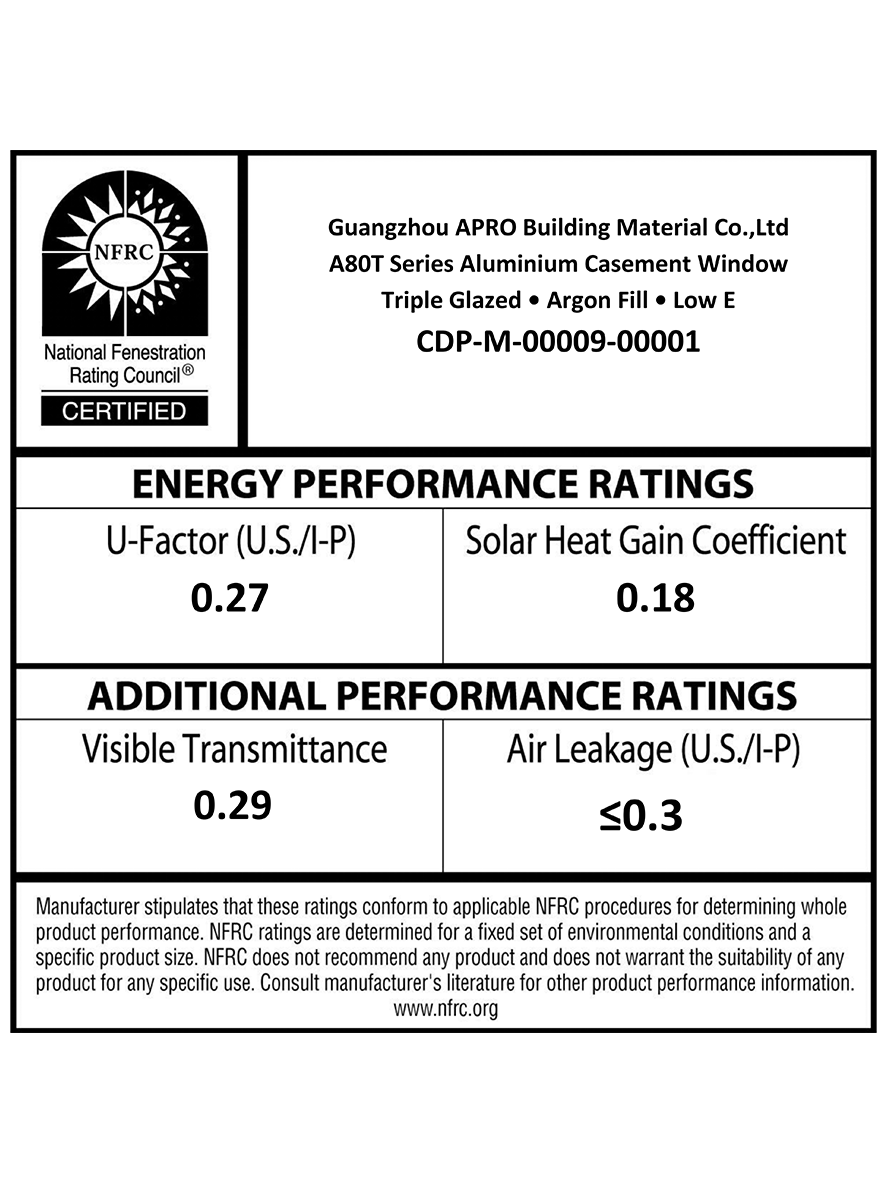

Canada ENERGY STAR product (as shown)
-
AAMA/WDMA/CSA 101 reference shown; CW PG40 noted
-
Acoustic performance listed: STC/OITC 44/37 (as shown)
-
Customizable sizes & finishes
-
Frame depth: 2.8″ (80mm) (as shown)
| Airtightness | Water-tightness | Sound Insulation | Thermal Insulation | Wind Resistance |
|---|---|---|---|---|
| 8 | 720pa | 4 | 44dB | 6 | 2.3w/m²k | AW (AAMA STANDARD) |
| Window Type | Visible Surface | Wall Thickness | Frame Thickness | Size Range (mm) |
| Casement Inside Window A80T Series |
Glass sash: 88mm | 2.0mm | 70mm | Width: 500–800 Height: 700–1800 |
| Glass Thickness | Maximum Load-Bearing | |||
| 6 + 12A + 6 6 + 12A + 6 + 12A + 6 |
85kg | |||

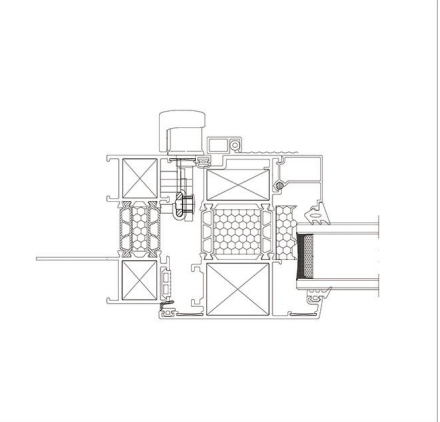

A80T Series Casement Window CAD
Certifications
FAQs
Is this window good for cold/hot climates?
Yes—its thermal break polyamide strips plus double/triple glazing options help reduce heat transfer and improve comfort.
What performance ratings does A80T have?
The table shows Airtightness 8, Water-tightness 720pa, Sound 4 | 44dB, Thermal 6 | 2.3w/m²k, and Wind AW (AAMA standard).
Can I choose double or triple glazing?
Yes—glass options include 6+12A+6 and 6+12A+6+12A+6.
What sizes can you make?
The shown size range is Width 500–800 mm and Height 700–1800 mm (as listed).
Is it certified for compliance projects?
The sheet shows CSA certified, references AAMA/WDMA/CSA 101 and CW PG40, and notes Canada ENERGY STAR.
What info do you need for a quote?
Opening size (W×H), quantity, glazing type, color/finish, hardware needs, and project location (residential or commercial).
Performance & Technical Advantages
Sound Insulation
Thermal Insulation
Airtightness

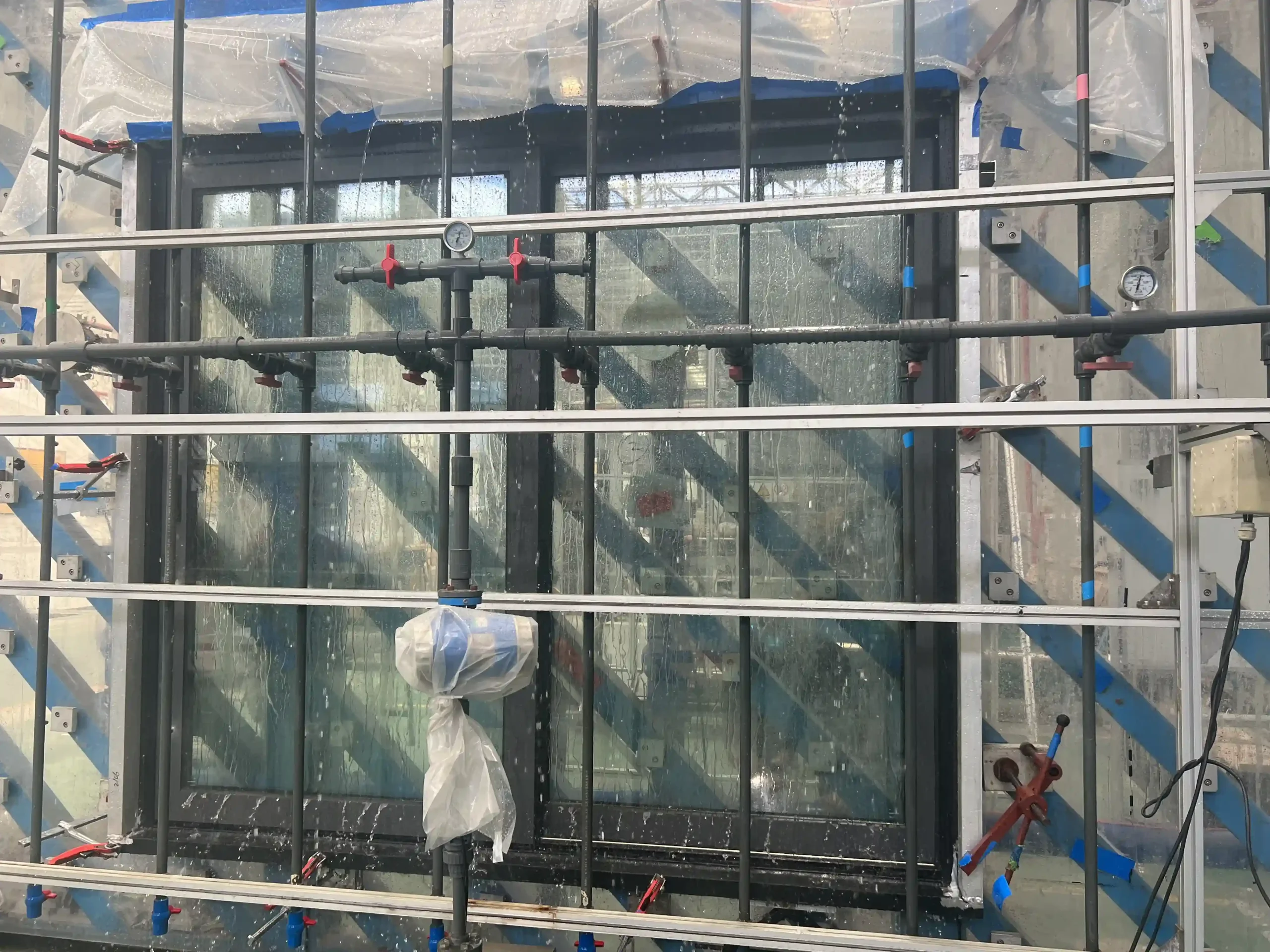

Water-tightness
Wind Resistance
Customization Options For Aluminum Window
Color
Standard colors, matte finishes, custom RAL matching
Glass
Double glazing, triple glazing, Low-E options
Frame
Thermal break profiles, reinforced frame designs
Size
Custom width, height, and proportions available
Hardware

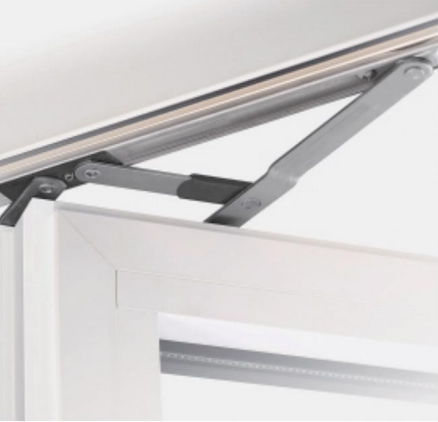

Multi-point locking, enhanced security hardware
Style

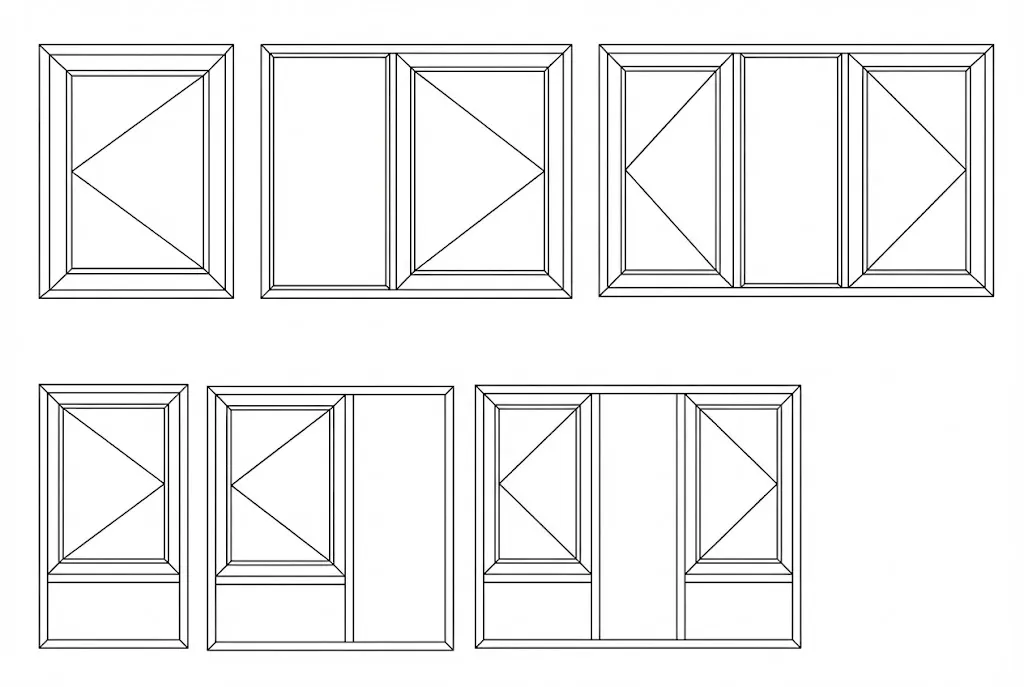

Tilt, turn, fixed, combined opening designs
